In this post, I am going to explain how the location-identity mapping database populates using MP-BGP. Consider the image below where VTEP01 takes the original ARP L2 frame from the HOST01. VTEP01 learns IP-MAC binding of the end host. BGP Update sends the information to the Route-Reflector (iBGP), which in turn forwards this update message to all its BGP peers. With the support of BGP EVPN, the discovery of the VTEP neighbour is more dynamic.
MP-BGP in combination with Ethernet VPN (EVPN) provides the control plane aspect. EVPN does not entirely remove the need for flooding. Broadcast traffic may still incur flooding.
VXLAN with BGP EVPN Configuration Overview
In this scenario, multidestination traffic is handled using IR (as opposed to PIM). In order to use BGP EVPN as the control plane, you need nv overlay evpn global configuration.
MP-BGP is known for its scalability, multitenancy, and routing policy capabilities. BGP EVPN address family (address-family l2vpn evpn) carries the MAC, IP, Network, VRF, and VTEP information of the hosts. Once a VTEP leans about a host behind it, BGP EVPN distributes this information to all other BGP EVPN neighbours. We have already discussed MP-BGP in this post. But I am going to give a brief summary in our BGP EVPN context.
Route Distinguisher helps us differentiate between different routes stored in MP-BGP table. For separation and path efficiency, use a unique RD on a per-VRF, per- router basis.
Route Target – which happens to have a similar notation as RD – associates with a particular route which then allows that route placed in the VRF which imports that route.
- Export route-target: what routes will go from VRF into BGP
- Import route-target: what routes will go from BGP into VRF
NX-OS provides automated derivation of RDs and RTs for simplification. The snippet below is an example of the configuration in one of the leafs.
LEAF01(config)# nv overlay evpn
LEAF01(config)# feature bgp
LEAF01(config)# feature vn-segment-vlan-based
LEAF01(config)# feature nv overlay
LEAF01(config)# vlan 100,200
LEAF01(config-vlan)# vlan 100
LEAF01(config-vlan)# vn-segment 20100
LEAF01(config-vlan)# vlan 200
LEAF01(config-vlan)# vn-segment 20200
LEAF01(config-vlan)# interface nve1
LEAF01(config-if-nve)# no shutdown
LEAF01(config-if-nve)# host-reachability protocol bgp
LEAF01(config-if-nve)# source-interface loopback1
LEAF01(config-if-nve)# member vni 20100
LEAF01(config-if-nve-vni)# ingress-replication protocol bgp
LEAF01(config-if-nve-vni)# member vni 20200
LEAF01(config-if-nve-vni)# ingress-replication protocol bgp
LEAF01(config-if-nve-vni)# router bgp 65000
LEAF01(config-router)# neighbor 192.168.0.1
LEAF01(config-router-neighbor)# remote-as 65000
LEAF01(config-router-neighbor)# update-source loopback0
LEAF01(config-router-neighbor)# address-family l2vpn evpn
LEAF01(config-router-neighbor-af)# send-community extended
LEAF01(config-router-neighbor-af)# neighbor 192.168.0.2
LEAF01(config-router-neighbor)# remote-as 65000
LEAF01(config-router-neighbor)# update-source loopback0
LEAF01(config-router-neighbor)# address-family l2vpn evpn
LEAF01(config-router-neighbor-af)# send-community extended
LEAF01(config-router-neighbor-af)# evpn
LEAF01(config-evpn)# vni 20100 l2
LEAF01(config-evpn-evi)# rd auto
LEAF01(config-evpn-evi)# route-target both auto
LEAF01(config-evpn-evi)# vni 20200 l2
LEAF01(config-evpn-evi)# rd auto
LEAF01(config-evpn-evi)# route-target both autoVXLAN core which is unaware of the inner header (identity), forwards the VXLAN frame based on only outer header (location). So, in our case, VXLAN core – which is typically our spines, are unaware of endpoint addresses (identities). But in order to carry the MP-BGP routes, you need to enable nv overlay evpn on them. Spines are good choice of being BGP RRs.
SPIN01(config)# nv overlay evpn
SPIN01(config)# feature bgp
SPIN01(config)# router bgp 65000
SPIN01(config-router)# template peer-policy RR_PEER_POLICY
SPIN01(config-router-ptmp)# send-community extended
SPIN01(config-router-ptmp)# route-reflector-client
SPIN01(config-router-ptmp)# template peer-session RR_PEER_SESSION
SPIN01(config-router-stmp)# remote-as 65000
SPIN01(config-router-stmp)# update-source loopback0
SPIN01(config-router-stmp)# neighbor 192.168.1.1
SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION
SPIN01(config-router-neighbor)# address-family l2vpn evpn
SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1
SPIN01(config-router-neighbor-af)# neighbor 192.168.1.2
SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION
SPIN01(config-router-neighbor)# address-family l2vpn evpn
SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1
SPIN01(config-router-neighbor-af)# neighbor 192.168.1.3
SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION
SPIN01(config-router-neighbor)# address-family l2vpn evpn
SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1
SPIN01(config-router-neighbor-af)# neighbor 192.168.1.4
SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION
SPIN01(config-router-neighbor)# address-family l2vpn evpn
SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1VTEP02 and VTEP03 receive the VXLAN frame and then perform deencapsulation. They both will learn MAC address of HOST01 and they map it to VTEP01.
There are two other notes here to mention: the subsequent messages are unicast if VTEP01 finds HOST02 location and identity. If there were a way which could distribute the same location-identity mapping across all edges, then the need for flooding could be eliminated.
The last note before we jump into the workshop is that we will discuss the verification commands along with BGP EVPN Route types in the next post.
Workshop

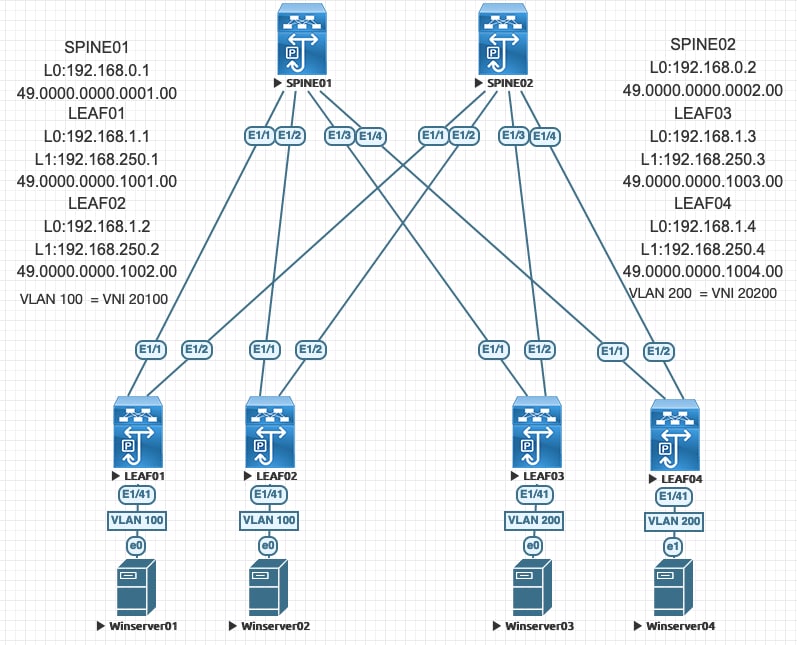

In this scenario, we will configure our very first VXLAN topology with Flood and Learn as well as with Ingress Replication for BUM traffic. In this scenario, IS-IS is configured for underlay:
SPINE01
nv overlay evpn
feature bgp
feature isis
interface Ethernet1/1
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/3
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/4
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface loopback0
ip address 192.168.0.1/32
ip router isis UNDERLAY
icam monitor scale
router isis UNDERLAY
net 49.0000.0000.0001.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
route-reflector-client
template peer-session RR_PEER_SESSION
remote-as 65000
update-source loopback0
neighbor 192.168.1.1
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.2
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.3
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.4
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1SPINE02
nv overlay evpn
feature bgp
feature isis
interface Ethernet1/1
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/3
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/4
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface loopback0
ip address 192.168.0.2/32
ip router isis UNDERLAY
router isis UNDERLAY
net 49.0000.0000.0002.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
route-reflector-client
template peer-session RR_PEER_SESSION
remote-as 65000
update-source loopback0
neighbor 192.168.1.1
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.2
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.3
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.4
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1LEAF01
nv overlay evpn
feature bgp
feature isis
feature vn-segment-vlan-based
feature nv overlay
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
ingress-replication protocol bgp
member vni 20200
ingress-replication protocol bgp
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/41
switchport access vlan 100
spanning-tree port type edge
interface loopback0
ip address 192.168.1.1/32
ip router isis UNDERLAY
interface loopback1
description NVE
ip address 192.168.250.1/32
ip router isis UNDERLAY
icam monitor scale
router isis UNDERLAY
net 49.0000.0000.1001.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export autoLEAF02
nv overlay evpn
feature bgp
feature isis
feature vn-segment-vlan-based
feature nv overlay
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
ingress-replication protocol bgp
member vni 20200
ingress-replication protocol bgp
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/41
switchport access vlan 100
spanning-tree port type edge
interface loopback0
ip address 192.168.1.2/32
ip router isis UNDERLAY
interface loopback1
description NVE
ip address 192.168.250.2/32
ip router isis UNDERLAY
icam monitor scale
router isis UNDERLAY
net 49.0000.0000.1002.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export autoLEAF03
nv overlay evpn
feature bgp
feature isis
feature vn-segment-vlan-based
feature nv overlay
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
ingress-replication protocol bgp
member vni 20200
ingress-replication protocol bgp
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/41
switchport access vlan 200
spanning-tree port type edge
interface loopback0
ip address 192.168.1.3/32
ip router isis UNDERLAY
interface loopback1
description NVE
ip address 192.168.250.3/32
ip router isis UNDERLAY
icam monitor scale
router isis UNDERLAY
net 49.0000.0000.1003.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export autoLEAF04
nv overlay evpn
feature bgp
feature isis
feature vn-segment-vlan-based
feature nv overlay
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
ingress-replication protocol bgp
member vni 20200
ingress-replication protocol bgp
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
no shutdown
interface Ethernet1/41
switchport access vlan 200
spanning-tree port type edge
interface loopback0
ip address 192.168.1.4/32
ip router isis UNDERLAY
interface loopback1
description NVE
ip address 192.168.250.4/32
ip router isis UNDERLAY
icam monitor scale
router isis UNDERLAY
net 49.0000.0000.1004.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export auto
